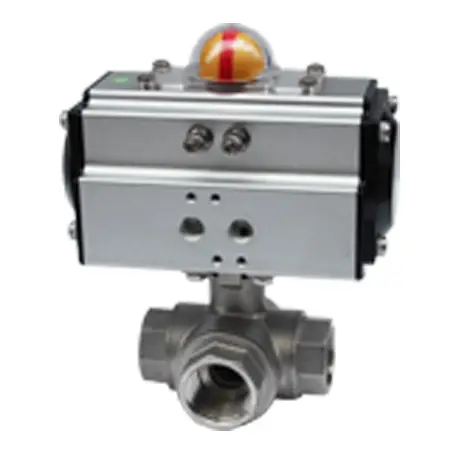

▶ 공통 사항 / Common Specifications
| Valve Size | 8A, 10A, 15A, 20A, 25A, 32A, 40A, 50A | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Actuator Type | 공압식(Pneumatic) / 복동식(Double Acting) | 공압식(Pneumatic) / 단동식(Single Acting) | |||||||
| Actuator Model | BT040D ~ BT075D | BT040S ~ BT083S | |||||||
| Operating Media | 청정한 압축공기 (Compressed Dry Air) | ||||||||
| Operating Pressure | 4 ~ 7 kg/cm²(0.4 ~ 0.7MPa) | 5 ~ 7 kg/cm²(0.5 ~ 0.7MPa) | |||||||
| Rotating Angle | 90º ± 5º | ||||||||
| Operating Temperature | 0 ~ 80℃ (단 동결이 없을 것) | ||||||||
| Rating | 10Kgf/cm² | ||||||||
| Body Material |
| ||||||||
| Accessory | Solenoid Valve, Air filter Regulator, Limit Switch box, E-P Positioner | ||||||||
▶ 외형 치수도 / Dimension Table
| M O D E L | S I Z E | A | A1 | H | L | ØD | ØD1 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Double | Single | MM | INCH | Double | Single | Double | Single | Double | Single | |||
| BT040D-8S3W | BT040S-8S3W | 8A | ¼” | 110 | 110 | 56 | 56 | 117 | 117 | 70 | 8 | ¼“ PT |
| BT040D-10S3W | BT040S-10S3W | 10A | ⅜” | 110 | 110 | 56 | 56 | 117 | 117 | 70 | 10 | ⅜“ PT |
| BT040D-15S3W | BT052S-15S3W | 15A | ½” | 110 | 150 | 56 | 73 | 117 | 134 | 70 | 15 | ½“ PT |
| BT052D-20S3W | BT052S-20S3W | 20A | ¾” | 150 | 150 | 73 | 73 | 142 | 142 | 78 | 20 | ¾“ PT |
| BT052D-25S3W | BT063S-25S3W | 25A | 1” | 150 | 168 | 73 | 83 | 153 | 168 | 88 | 25 | 1“ PT |
| BT063D-32S3W | BT075S-32S3W | 32A | 1-1/4” | 168 | 186 | 83 | 96 | 171 | 183 | 110 | 32 | 1-¼“ PT |
| BT075D-40S3W | BT083S-40S3W | 40A | 1-1/2” | 186 | 206 | 96 | 104 | 195 | 205 | 132 | 40 | 1-½“ PT |
| BT083D-50S3W | BT092S-50S3W | 50A | 2″ | 206 | 265 | 104 | 108 | 213 | 220 | 146 | 50 | 2“ PT |
