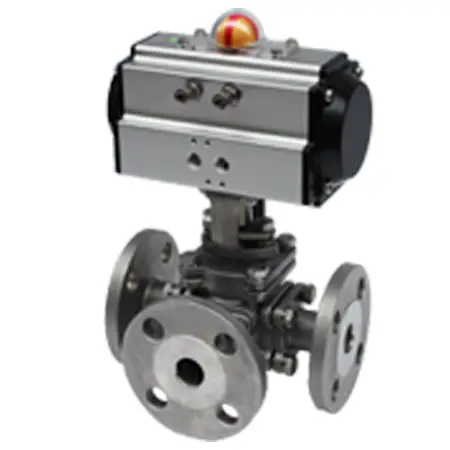

공압 3WAY 프랜지볼밸브

특징 / Feature / Application

Valve Size

15A ~ 150A

Actuator Type

공압식(Pneumatic) / 복동식(Double Acting)

공압식(Pneumatic) / 단동식(Single Acting)

Actuator Model

BT063D ~ BT190D

BT063S ~ BT210S

Operating Media

청정한 압축공기 (Compressed Dry Air)

Operating Pressure

4 ~ 7 kg/cm²(0.4 ~ 0.7MPa)

5 ~ 7 kg/cm²(0.5 ~ 0.7MPa)

Rotating Angle

90º ± 5º

Operating Temperature

0 ~ 80℃ (단 동결이 없을 것)

Rating

KS(JIS) 10Kgf/cm² / ANSI 150# / DN PN16 PN40

Body Material

SUS304(SUS316) / Body

SUS304(SUS316) / Ball

PTFE(RTFE) / Seat

Accessory

Solenoid Valve, Air filter Regulator, Limit Switch box, E-P Positioner

M O D E L		S I Z E		A		A1		H		L	F L A N G E
Double	Single	MM	INCH	Double	Single	Double	Single	Double	Single	10K	t	Ød	ØG	ØC	ØD	N-H
BT063D-15F3W	BT063S-15F3W	15A	½”	168	168	83	83	200	200	190	12	15	52	70	95	4-15
BT075D-20F3W	BT083S-20F3W	20A	¾”	186	206	96	104	214	224	190	14	20	58	75	100	4-15
BT075D-25F3W	BT092S-25F3W	25A	1″	186	206	96	108	227	244	200	14	25	70	90	125	4-19
BT083D-32F3W	BT092S-32F3W	32A	1-¼”	206	265	104	108	240	247	240	16	32	80	100	135	4-19
BT092D-40F3W	BT105S-40F3W	40A	1-½”	265	272	108	122	240	247	240	16	40	85	105	140	4-19
BT105D-50F3W	BT125S-50F3W	50A	2”	272	304	122	142	290	322	260	16	50	100	120	155	4-19
BT105D-65F3W	BT125S-65F3W	65A	2-½”	272	304	122	142	299	331	320	18	65	120	140	175	4-19
BT125D-80F3W	BT140S-80F3W	80A	3″	304	395	142	151	369	376	360	18	80	130	150	185	8-19
BT140D-100F3W	BT160S-100F3W	100A	4″	395	462	151	174	388	422	430	18	100	155	175	210	8-19
BT160D-125F3W	BT190S-125F3W	125A	5″	462	552	174	206	486	520	504	20	125	185	210	250	8-23
BT190D-150F3W	BT210S-150F3W	150A	6″	552	–	206	–	546	–	560	22	150	215	240	280	8-23
