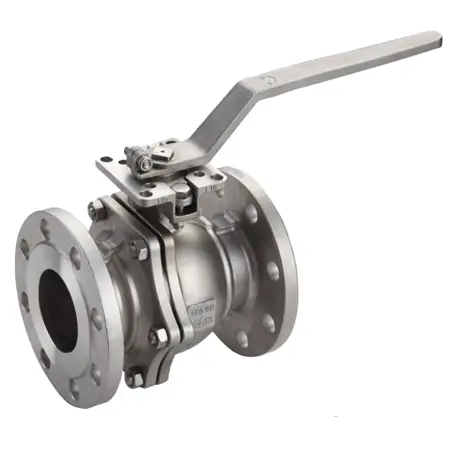

JIS 10K BALL VALVE DIRECT PAD
MAIN PART MATERIAL
| NO. | PART NAME | MATERIAL | QTY |
| 1 | CAP | CF8/CF8M/CF3M | 1 |
| 2 | BOLT | S201/S304 | 4(6)(8) |
| 3 | NUT | S201/S304 | 4(6)(8) |
| 4 | STEM SEAL | PTFE/RTFE | 1 |
| 5 | BALL | SS304/SS316/SS316L | 1 |
| 6 | SEAT | PTFE/RTFE/CABON | 2 |
| 7 | BODY | WCB/CF8/CF8M/CF3M | 1 |
| 8 | STEM | SS304/SS316/SS316L | 1 |
| 9 | THRUST WASHER | PTFE/RTFE | 1 |
| 10 | PACKING | PTFE/RTFE | 1 |
| 11 | GLAND | S201/S304 | 1 |
| 12 | HANDLE | HT400 | 1 |
| 13 | HANDLE LOCK | S201/S304 | 1 |

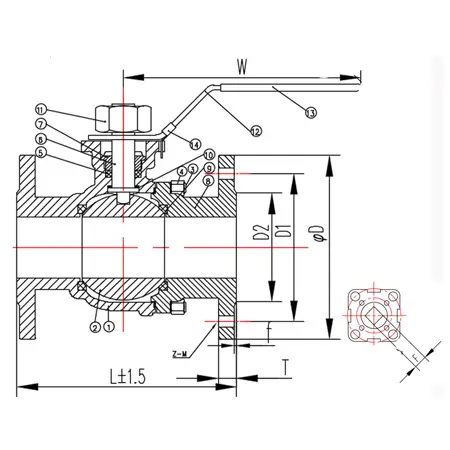

▶ 외형 치수도 / Dimension Table
| DN | D | D1 | D2 | T | f | L | F |
|---|---|---|---|---|---|---|---|
| 15A | 95 | 70 | 52 | 12 | 1 | 108 | 9 |
| 20A | 100 | 75 | 58 | 14 | 1 | 117 | 9 |
| 25A | 125 | 90 | 70 | 14 | 1 | 127 | 11 |
| 32A | 135 | 100 | 80 | 16 | 2 | 140 | 11 |
| 40A | 140 | 105 | 85 | 16 | 2 | 165 | 14 |
| 50A | 155 | 120 | 100 | 16 | 2 | 178 | 14 |
| 65A | 175 | 140 | 120 | 18 | 2 | 190 | 17 |
| 80A | 185 | 150 | 130 | 18 | 2 | 203 | 17 |
| 100A | 210 | 175 | 157 | 18 | 2 | 229 | 17 |
| 125A | 250 | 210 | 185 | 20 | 2 | 356 | 22 |
| 150A | 280 | 240 | 215 | 22 | 2 | 394 | 22 |
